Sure tie anchor

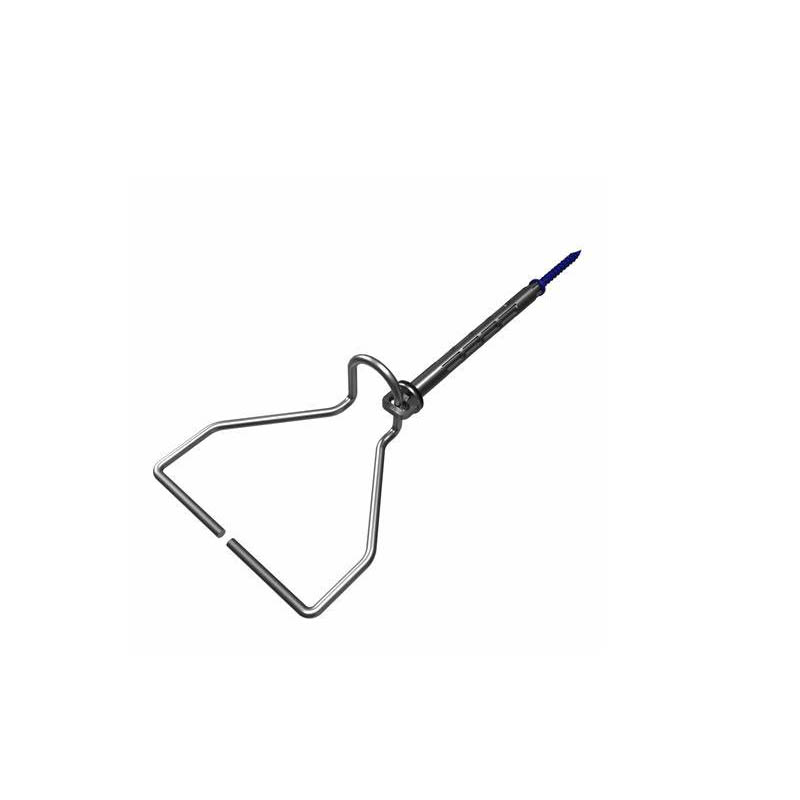

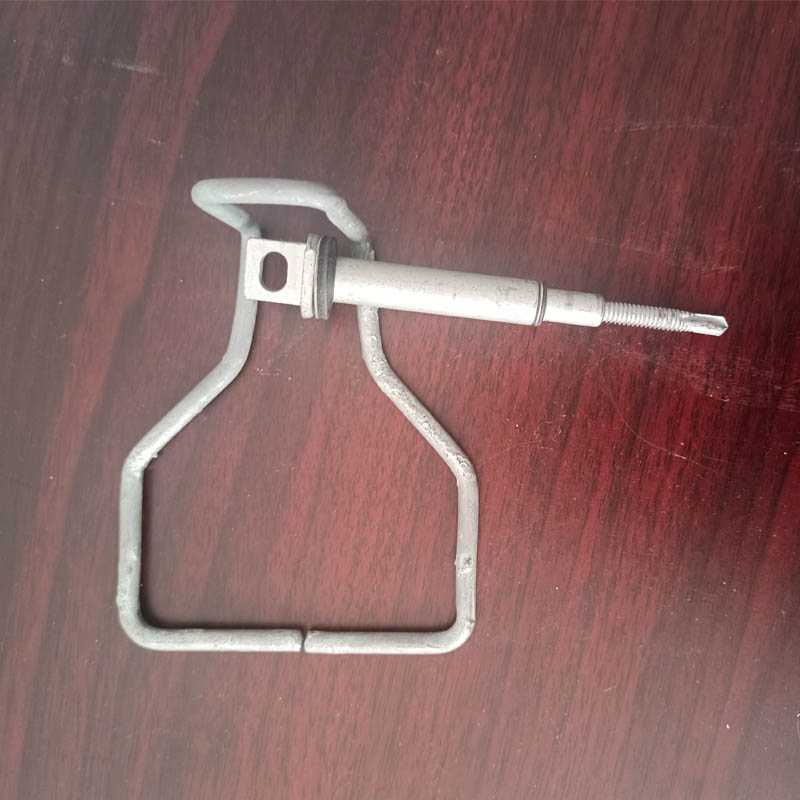

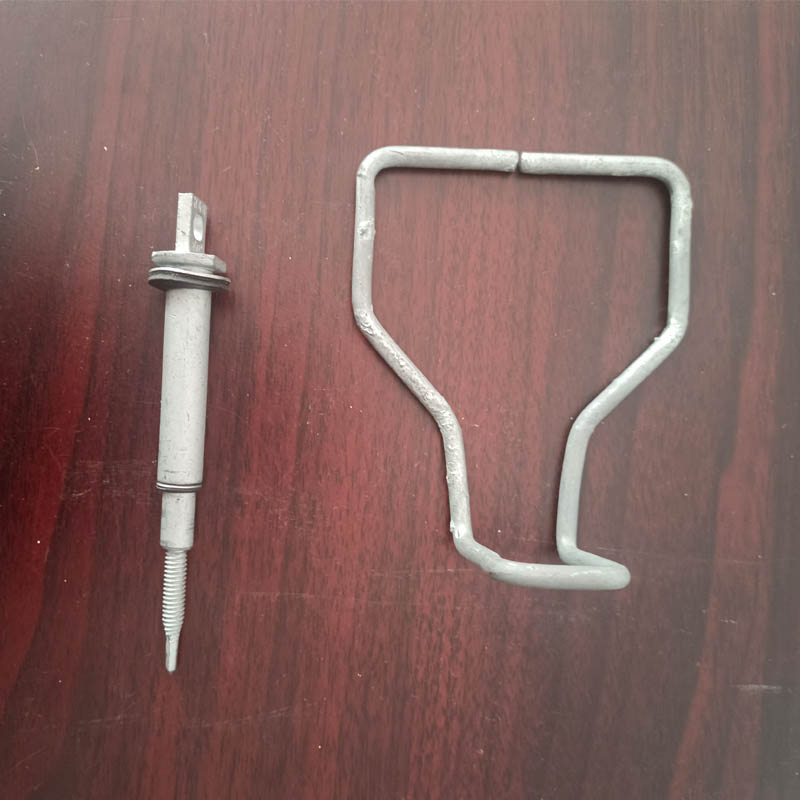

Sure Tie anchors are a type of anchoring system used in brick veneer applications to provide a secure and stable connection between the brick veneer and the steel stud backup. The Sure Tie anchor system consists of a steel triangle-shaped anchor with a pointed end that can quickly and accurately pierce through insulation and/or wallboard to make contact with the steel studs behind. The Sure Tie anchor system allows for positive contact with the steel stud backup, transferring compression and tension loads from the veneer to the studs. The Sure Tie triangle is adjustable, allowing for up to 1-1/4" of vertical movement both up and down. This adjustability helps to accommodate any unevenness or movement in the studs. Sure Tie anchors hold the insulation in place, allowing contractors to install 4'x 8' sheets with ease, saving time and money.

SureTie anchoring system is designed to provide a quick, accurate installation while ensuring a reliable connection between the masonry veneer and the steel stud framing. Its main advantages include:

1. Quick installation: SureTie allows for quick penetration through insulation and/or gypsum board, saving installation time.
2. Accurate installation: SureTie ensures accurate contact between the masonry veneer and the steel stud framing, enhancing the stability and reliability of the installation.
3. Adjustable: The SureTie triangle is adjustable, accommodating up to 1-1/4" of vertical movement to suit different installation requirements.
4. Time and cost-saving: SureTie can secure insulation, allowing contractors to install 4'x 8' panels more efficiently, saving time and money.

SureTie anchoring system is widely used in the construction industry, particularly in masonry veneer applications such as exterior insulation systems and masonry veneer walls. It is suitable for various types of masonry veneers, including brick, stone, and tile.

1. Prepare the installation surface: Ensure the surface is clean, level, and free of obstacles.
2. Install SureTie anchoring system: Insert the SureTie into the insulation and/or gypsum board to make contact with the steel stud framing.
3. Adjust SureTie triangle: Position and adjust the SureTie triangle as needed to ensure accurate installation of the masonry veneer.
4. Install masonry veneer: Install the masonry veneer onto the SureTie anchoring system, ensuring it makes positive contact with the steel stud framing.
5. Check and secure: Verify the installation quality of the masonry veneer and secure it as necessary.

SureTie anchoring system is typically made from high-strength steel or stainless steel and may undergo processes such as cutting, bending, and welding to shape it into the desired form and size. Surface treatment, such as galvanizing or powder coating, may be applied to enhance its corrosion resistance and appearance. Additionally, SureTie may be fabricated to ensure compatibility with insulation and gypsum board for a secure installation.

We can produce custom SureTie anchoring systems according to customer's drawings and requirements. Our advanced production equipment and technical team can handle custom manufacturing to meet specific customer needs. If you have any questions or require further information about SureTie, please feel free to let me know.

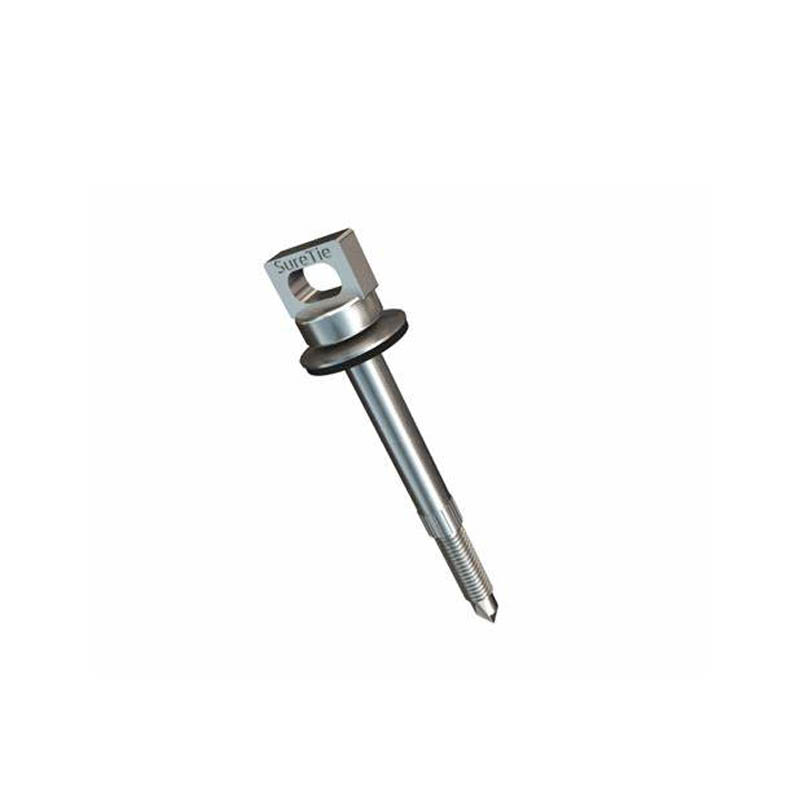

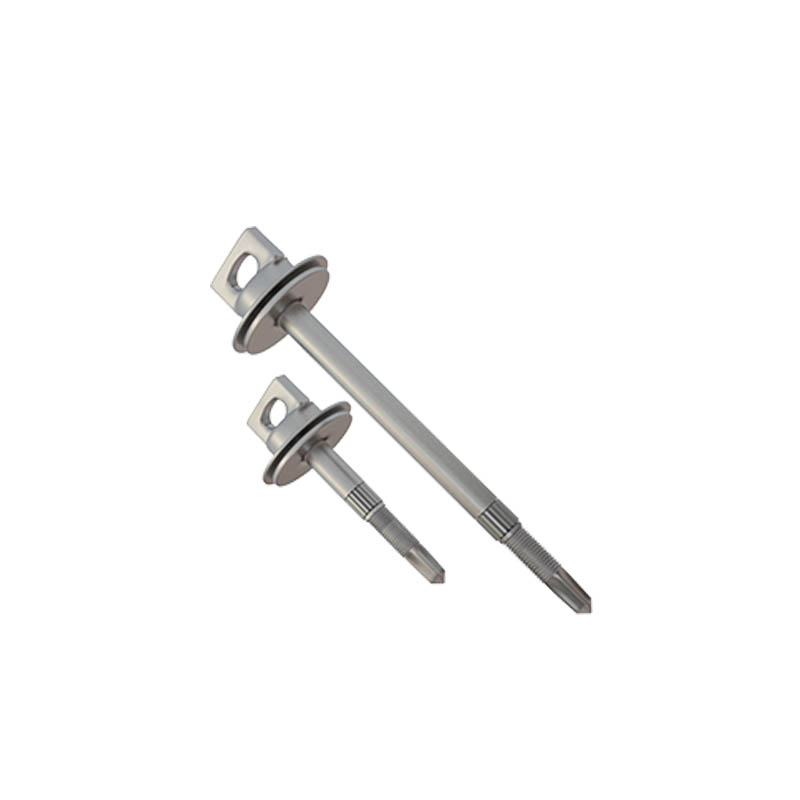

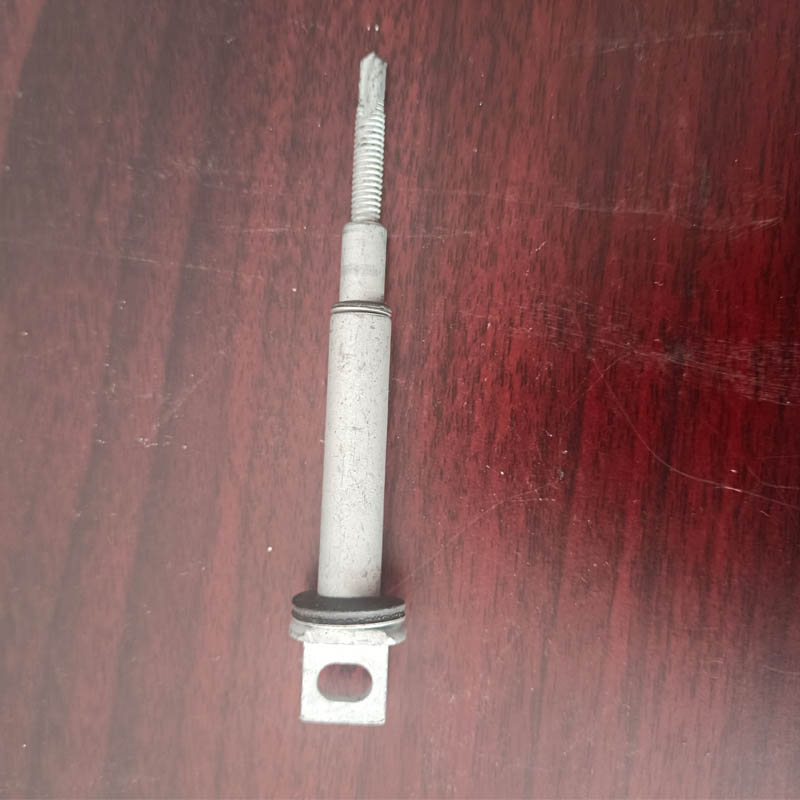

• Design permits no disengagement.
• Maximum clearance between connecting parts of the tie is 1/16″.
• High strength barrel and slotted head fabricated from carbon steel.
• One-piece design provides superior strength.
• 12-24 self driller
• Accommodates Various thicknesses of insulation.
