Product introduction
Plate Tab Sizes: no insulation, 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4"
Available in Hot dip Galvanized After Fabrication and Type 304 Stainless Steel.
The ADJUSTABLE VENEER ANCHOR is an adjustable veneer anchor for metal stud and wood stud construction.

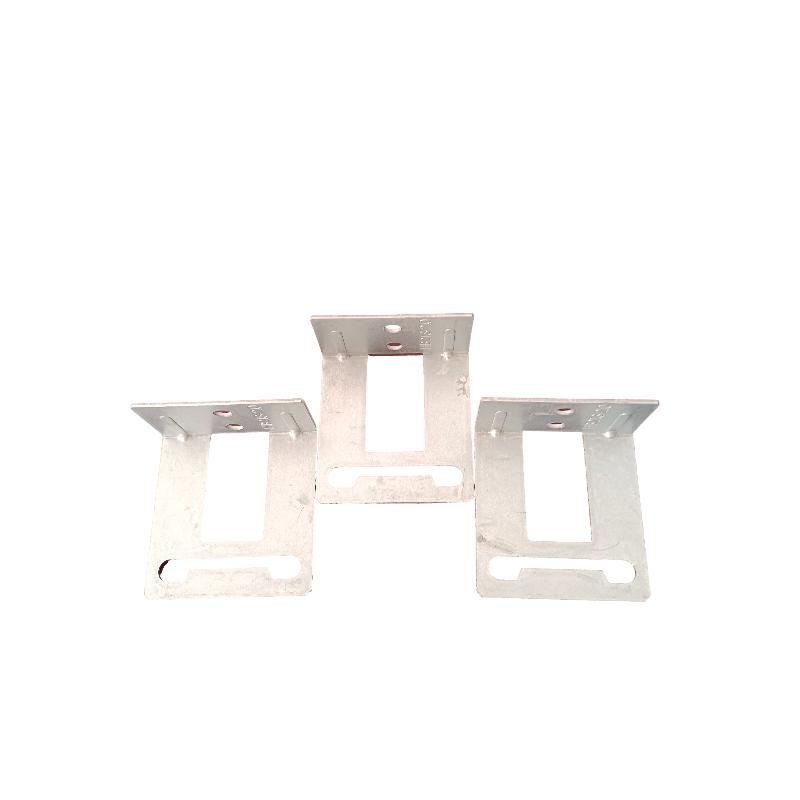

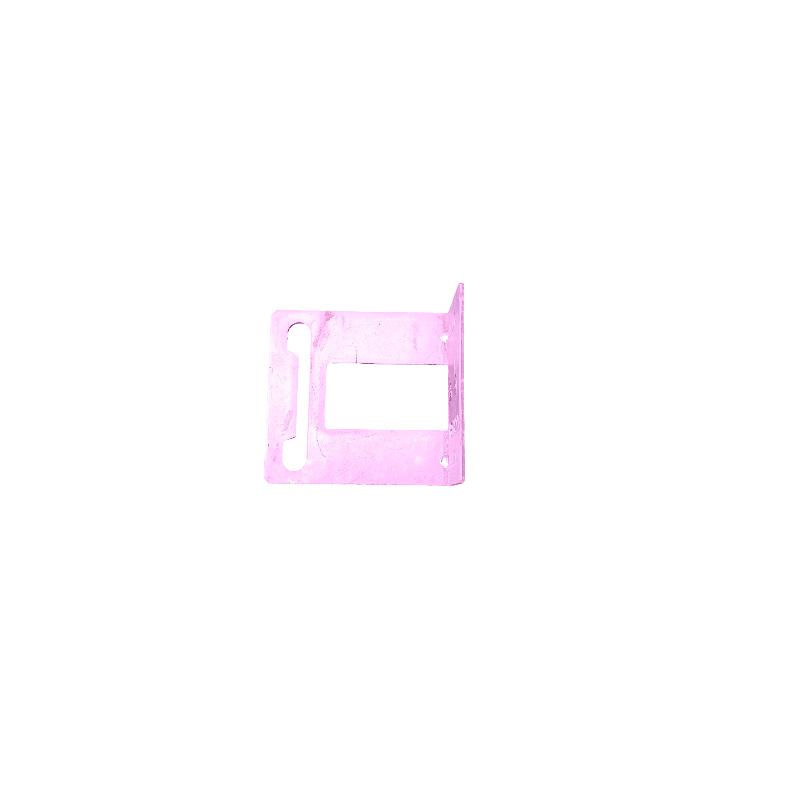

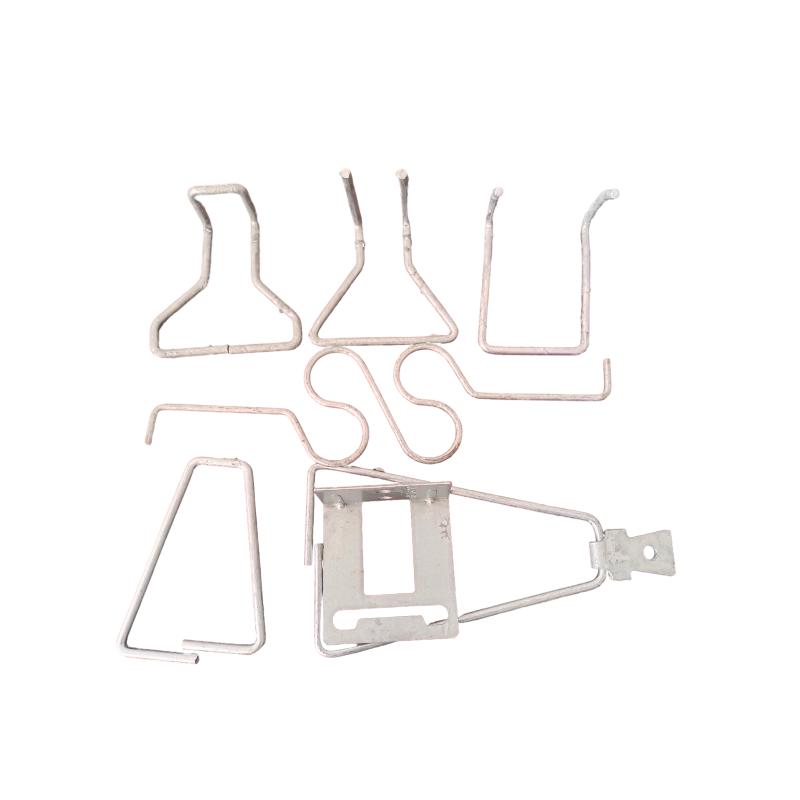

The Double Pintle Plate Veneer Anchors are attached directly to the backup system. Insulation/mineral wool is then placed above and below the horizontal tab. It is used with Double Pintle Wire Tie.
Plate Tab Sizes: no insulation, 1 inch, 1.5 inches, 2 inches, 2.5 inches, 3 inches, 3.5 inches, 4 inches
Available in Hot Dip Galvanized After Fabrication and Type 304 Stainless Steel.
Details
- This Double Pintle Plate Veneer Anchor is made of high-quality materials and is sturdy and durable.
- It is designed for metal stud and wood stud structures, providing reliable veneer fastening.
- The adjustable design allows it to adapt to different installation requirements.
Usage
1. Attach the Double Pintle Plate Veneer Anchor directly to the backup system to ensure a secure connection.
2. Place insulation/mineral wool above and below the horizontal tab to provide additional insulation and soundproofing effects.

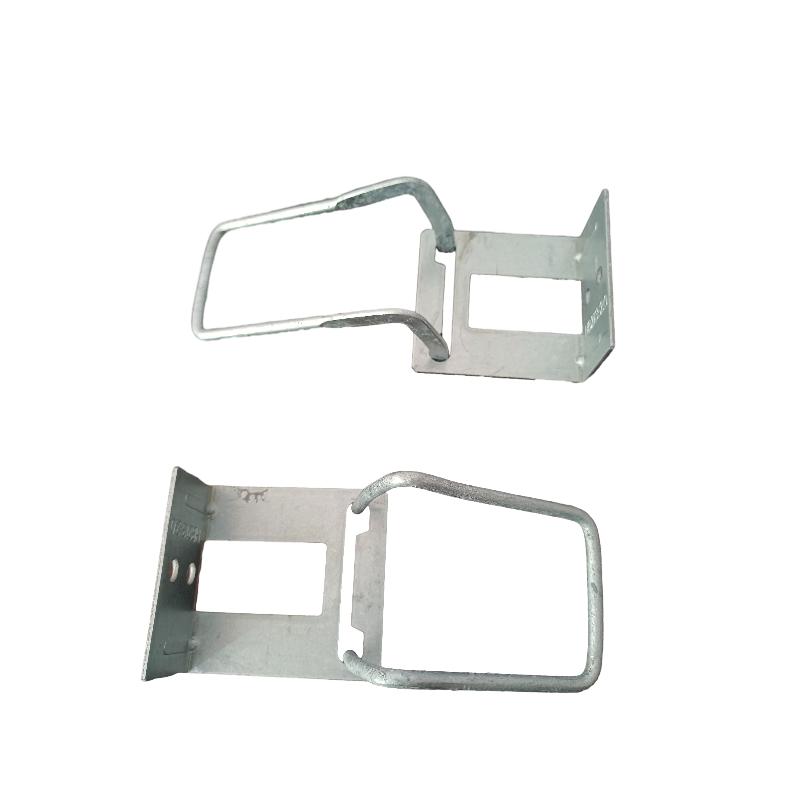

3. Use Double Pintle Wire Ties to secure the veneer to the anchor for safety and stability.
Manufacturing Process
1. Adopt advanced manufacturing techniques to ensure the quality and performance of the Double Pintle Plate Veneer Anchor.
2. Rigorous quality testing is conducted to meet relevant standards and specifications.
3. Hot Dip Galvanized or Type 304 Stainless Steel materials are available to meet different environmental needs.
It should be noted that specific requirements and project specifications may require consideration of other factors, such as installation location and load capacity. Before using the Double Pintle Plate Veneer Anchor, it is recommended to carefully read the product manual and follow the manufacturer's instructions. This ensures correct installation and optimal performance. If you have any further questions or require additional information, you can consult relevant professionals at any time.
