Product Content
Reinforcing Concrete Mesh - Integral Concrete Structures Component

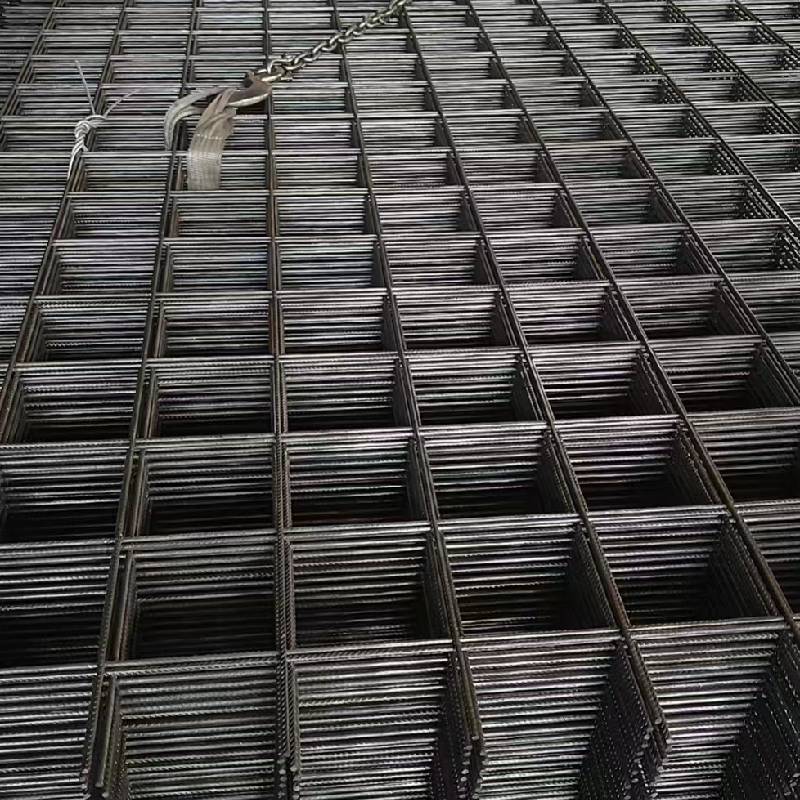

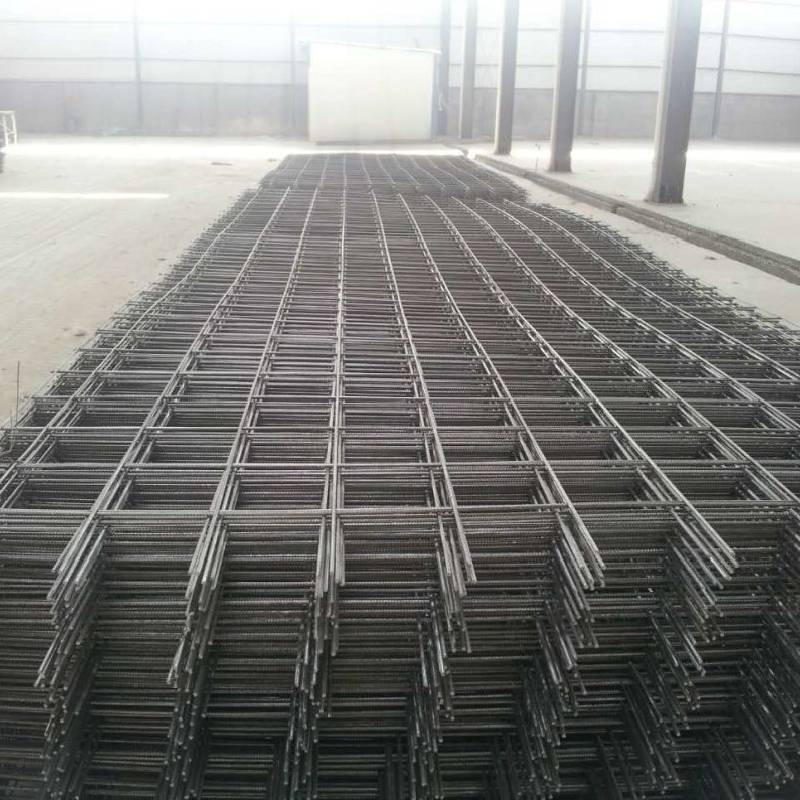

reinforcing concrete mesh. We cooperate with wholesale and construction companies, owners of farms and suburban areas.Welded mesh reinforcement bars are from 3 to 40 mm diameter, located in mutually perpendicular direction and forming a square or rectangular shape mesh. Reinforcing mesh opening size ranging from 50 mm to 250 mm. Distinguish heavy reinforcing mesh (diameter rods of 12 mm and above) and light meshes (the diameter of the rods from 3 mm to 12 mm).
When choosing a wire mesh, material, mesh sheet size, mesh opening, and the purpose must be taken into account. For example, if you need concrete mesh for plastering, the thin wire mesh is suitable.
Specification
concrete reinforcing mesh specification:Materials:
stainless steel rebar, galvanized steel rods.
Diameter: 3 mm - 40 mm.
Steel rods style: ribbed or smooth.
Mesh opening shape: square or rectangular.
Distance between rods 100, 200, 300, 400 and 500 mm.
Mesh sheet width 0.65 m - 3.8 m, and length from 0.85 m, 6 m, 9 m, 12 m.
Mesh sizes 6.0 m × 2.4 m, 4.80 m × 2.4 m, 3.6 m × 2 m, 2 m × 4 m.
The reinforcing steel mesh has become an integral component of reinforced concrete structures and is used to enhance them.
