Product Introduction

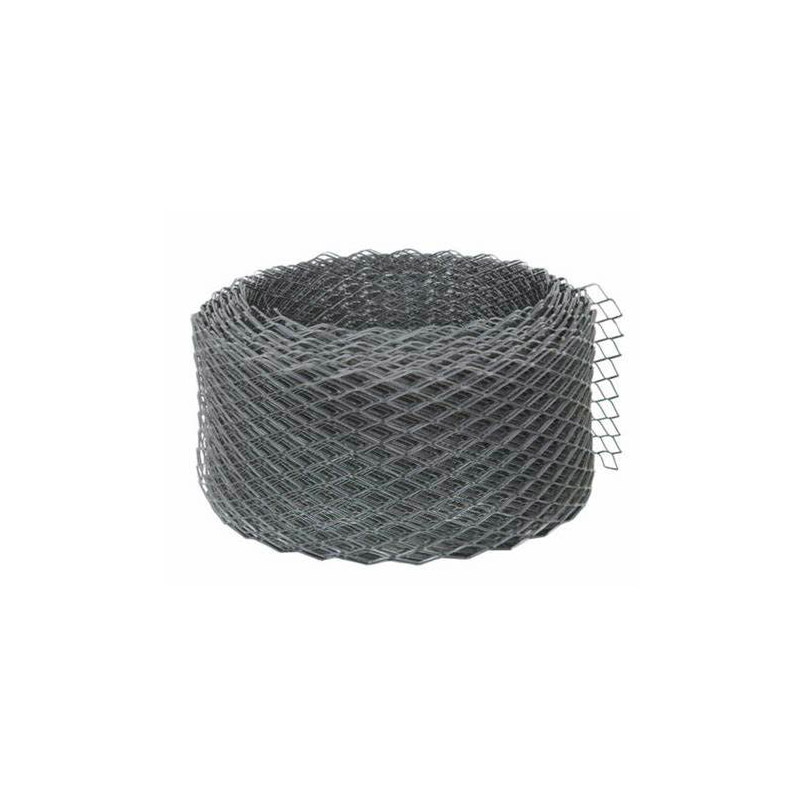

Brick Mesh is essential reinforcement components for masonry work to provide additional resistance to stresses, vibration and thermal movement of the brick wall. The lowest layer of Brick Mesh should be laid over the 1st or 2nd course and at every subsequent 4th course of brickwork. There should be a minimum 150mm lapping where different sections of mesh reinforcement overlap.
Material: Galvanized steel, stainless steel
Width: 65mm, 100mm, 175mm, 225mm, 300mm
Length: 1.2m, 20m
Applications
Expanded metal is mainly used in concrete slab, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering etc.
Specifications
Specification of Brick Wall Mesh
Width: 65cm,100cm,150cm,200cm
Length:1.2m,20m
Specification of Brick Wire Mesh
Thickness: 0.3-0.6mm
Mesh size: 12x25mm
Roll width: 65mm, 75mm, 100mm, 175mm, 225mm, 300mm etc.
Roll length: 10m, 30m, 50m, 100m etc.
Packing: On cartons or as your requirement.
|
Galvanized |
Stainless |
Norminal Weight |
Roll Size |
Recommended |
|
FLS-01 |
SS |
0.9 |
65mm x 100m |
For 100mm Wall |
|
FLS-02 |
SS |
0.9 |
115mm x 100m |
For 150mm Wall |
|
FLS-03 |
SS |
0.9 |
175mm x 100m |
For 200mm Wall |
|
FLS-04 |
SS |
0.9 |
225mm x 100m |
For 250mm Wall |
Description of Brick Mesh
Brick Wire Mesh is easy to handle, and when laid embedded in the mortar joining between brickwork or blockwore courses, forms an integral structure of great tcnsilc strcngth which assists in the resistance, vibrations and thermal changes.
The range of reinforcement coils satisfies most wall thickness. Laid on the mortar bed with 25mm clearance to the outside face of the wall and lapped ant least 75mm, if joining lengths.
The reinforcement is then embedded completely and for most applications, every third course is suffcient.
Brick Mesh Installation:
Fix into mortar between brick courses leaving 25mm clearance from face of brickwork. All joints require an overlap of at least 75mm. The mesh can be laid every third brickwork course for most reinforcement.
Brick Mesh Applications:
Concrete slabbing, roads, paving, foundations, marine work, bank strong rooms, partition slabs, concrete block work, asphalt guttering and so on
Our company is a manufacturer of brick wall mesh with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in masonry building, chemical industry, machine and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
