Strong Wall Support Choices

In the construction world, securing cavity walls is a must for long-term building strength. Whether you're building new houses, repairing older walls, or upgrading thermal insulation systems, good support hardware makes all the difference. As building codes tighten and energy efficiency gains more focus, using the right wall tie system becomes even more important. Right now, there’s increasing attention on practical, durable, and rust-resistant choices like galvanised butterfly wall ties, wall straps for brickwork, 250mm cavity wall ties, and methods of cavity wall tie installation. These are the components you don’t see—but that keep the whole structure standing safely and for longer.

Reliable Fixing with Galvanised Butterfly Wall Ties

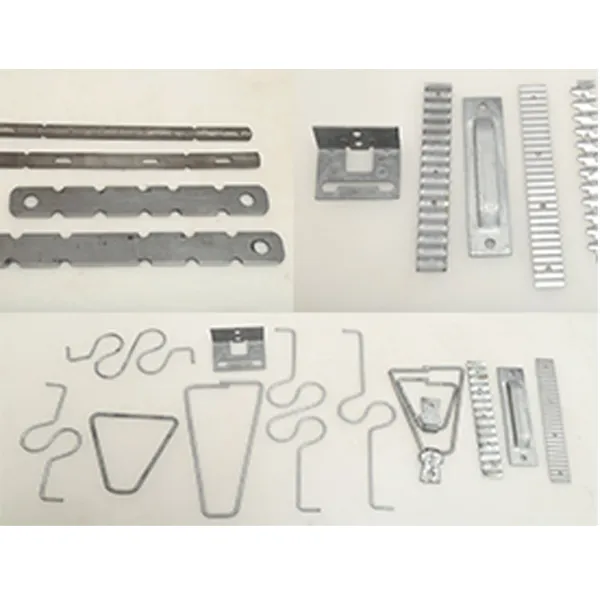

When it comes to everyday brickwork and cavity walls, many builders now prefer using galvanised butterfly wall ties because of their practical design and dependable performance. The butterfly shape helps them flex slightly, allowing for some movement between the inner and outer leaves of a wall without causing cracks or failure. These ties are most often used in standard residential builds or light commercial buildings where moderate wind loads are expected, and their shape provides enough strength without being too rigid.

Another reason these ties are popular is because of their protective galvanised coating, which helps prevent rust and corrosion over time. This is crucial because wall ties are hidden inside the wall cavity and exposed to air and moisture. If they rust and fail, repairs can be expensive and invasive. Builders choose galvanised butterfly wall ties for their combination of affordability, long life, and ease of installation. They’re lightweight, easy to insert into mortar joints, and come in various lengths to suit different cavity widths. Whether you're working on a new build or upgrading insulation, these ties are a go-to choice for safe and secure construction.

Choosing the Right Wall Straps for Brickwork

In addition to ties, wall straps for brickwork play a major role in keeping walls stable and securely anchored to adjoining structures. These straps are often required by building regulations, especially in areas with high wind exposure or where structural movement may be a concern. You’ll find them in lofts, wall corners, and around doors or windows where extra anchoring is needed to prevent shifting or leaning over time.

Nowoczesny wall straps for brickwork are made from strong, corrosion-resistant steel and come with pre-drilled holes for easy fixing with screws or bolts. They’re available in straight, bent, or twist designs depending on where they need to go and how the load is being transferred. For example, a twisted strap can allow for better overlap in tight spaces or unusual angles. These straps are commonly used in both timber-frame and masonry construction and are part of a builder’s basic toolset when working on structural reinforcement. By using high-quality straps, you reduce long-term risks of cracking or wall separation and ensure the building performs well under stress and seasonal changes.

Standard Sizes Like 250mm Cavity Wall Ties in Focus

Among all the available sizes, 250mm cavity wall ties are one of the most commonly used for buildings with standard 100mm cavity widths. This size is often specified in construction plans for residential homes and is favored because it meets the performance needs of most domestic applications. They help to tie the inner and outer wall leaves together, ensuring they behave as one solid structure even when wind loads or temperature fluctuations cause movement.

250mm cavity wall ties are typically available in various styles, including wire types, butterfly shapes, or vertical twist types, and are made from either galvanised steel or stainless steel for durability. Choosing the correct length is important for proper performance—if the tie is too short, it won’t bridge the cavity effectively, and if too long, it can cause alignment issues or thermal bridging. Builders and contractors trust this size because it’s been tested, standardized, and works well with most cavity wall systems. Using the right length not only ensures compliance with codes but also improves the lifespan and integrity of the wall.

Efficient and Correct Cavity Wall Tie Installation Matters

One of the most important stages in wall construction is correct cavity wall tie installation. Even the best wall tie won’t do its job unless it’s installed at the right height, spacing, and angle. Most modern building regulations specify the horizontal spacing between ties should be no more than 900mm, and vertical spacing should be around 450mm, with extra ties around doors, windows, and corners for support. Proper placement ensures an even distribution of forces across the wall, preventing bulging, cracking, or collapse.

Another key aspect of cavity wall tie installation is making sure the ties are correctly embedded in mortar, usually about 50mm deep on both sides. They should be slightly sloped to the outside to help shed any moisture and reduce the risk of internal damp. Installers also need to avoid common errors like over-packing with mortar, misalignment, or using the wrong tie type for the building’s exposure rating. Skilled tradespeople follow strict procedures to ensure ties are level, evenly spaced, and matched to cavity width. In retrofit cases, specialist tools like wall tie detectors and replacement kits make it possible to assess and repair older properties without tearing down the whole wall. Done right, tie installation will hold your building firm for decades.

250mm Cavity Wall Ties FAQs

What type of walls are 250mm cavity wall ties used for?

250mm cavity wall ties are typically used for brick or block cavity walls with a cavity width of about 100mm, common in residential homes.

Are 250mm cavity wall ties suitable for all weather conditions?

Yes, most 250mm cavity wall ties are made from galvanised or stainless steel, which resists corrosion and suits a range of exposure zones.

Can I use 250mm cavity wall ties for retrofitting old walls?

Yes, retrofit 250mm cavity wall ties are available and can be installed using specialist tools without removing bricks.

How far apart should I install 250mm cavity wall ties?

The usual spacing is 900mm horizontally and 450mm vertically, with extra ties around openings and edges for added strength.

What’s the difference between stainless steel and galvanised 250mm cavity wall ties?

Stainless steel ties offer better corrosion resistance and are preferred for coastal or damp areas, while galvanised 250mm cavity wall ties are more affordable and work well in standard environments.

Using the right wall ties and installation techniques ensures a building's long-term durability and compliance with modern safety standards. Whether you're a self-builder, contractor, or renovator, products like galvanised butterfly wall ties, wall straps for brickwork, 250mm cavity wall ties, and proper cavity wall tie installation methods can save time, money, and hassle while keeping structures solid and safe for years to come.
