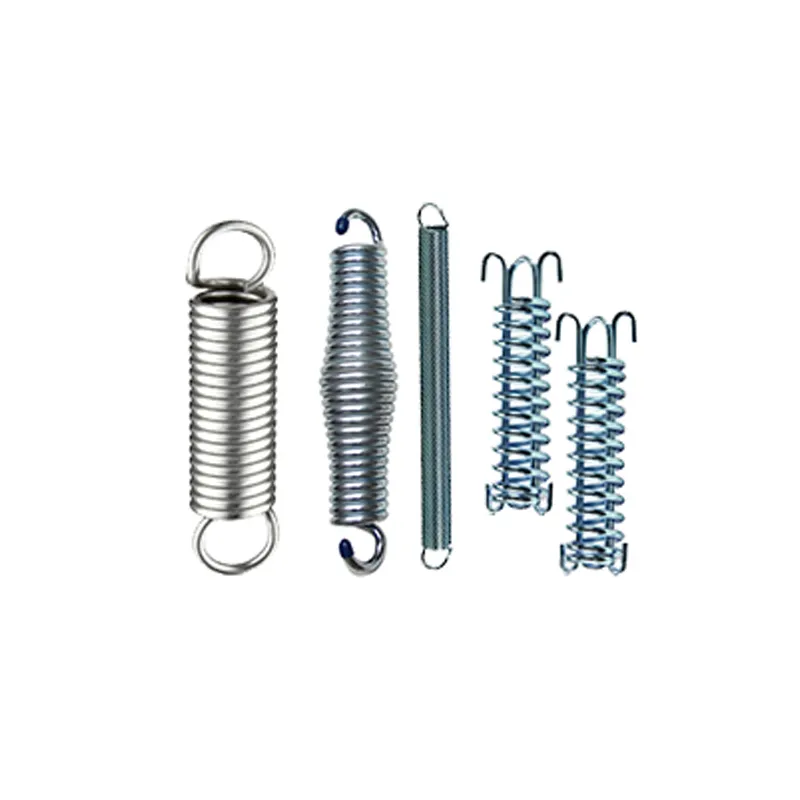

Understanding the Manufacturing Process of Coil Wire Springs

Coil wire springs are essential components in a wide variety of mechanical systems, especially in industries such as automotive, aerospace, and manufacturing. These springs are designed to store and release mechanical energy when compressed, stretched, or twisted, making them invaluable for applications requiring force control, stability, and flexibility. However, to perform optimally, coil wire springs must be precisely engineered and manufactured. This essay will explore the intricate process involved in the production of coil of spring, highlighting key stages such as material selection, coiling, heat treatment, and finishing.

Material Selection for Coil Wire Springs

The manufacturing process of coil wire springs begins with careful material selection. The choice of material is crucial because it determines the spring's strength, durability, and ability to withstand various mechanical stresses. Most universal coil springs are made from high-carbon steel, stainless steel, or alloy steel, depending on the specific application.

High-carbon steel is commonly used for springs that require high strength and durability but are not subjected to extreme corrosion conditions. It is particularly popular for automotive suspension springs.

Stainless steel is selected for applications where resistance to corrosion is critical, such as in the aerospace industry or in marine environments. Stainless steel springs are durable and maintain their mechanical properties even under harsh conditions.

Alloy steel combines elements like chromium, vanadium, and molybdenum to enhance specific characteristics such as elasticity, tensile strength, and fatigue resistance. Alloy steel springs are commonly used in high-performance applications, including heavy machinery and high-stress environments.

Coiling Process of Coil Wire Springs

Once the appropriate material is selected, the next step is the coiling process. This is where the wire is wound into a spiral shape to form the coil spring. The coiling process involves the use of specialized machines that automatically wind the wire into the desired shape based on the spring's specifications.

Wire Feeding: The wire is fed into a coiling machine, which holds it in place while winding it into a coil. The thickness and diameter of the wire, as well as the number of coils, depend on the requirements of the specific application.

Coiling Parameters: Key parameters such as coil diameter, pitch (the distance between each coil), and the spring’s free length are programmed into the machine. These specifications are critical because they determine the spring’s elasticity, load-bearing capacity, and range of motion.

Heat Treatment of Coil Wire Springs

After the coil wire spring is coiled, it undergoes a heat treatment process. This is a vital step that strengthens the spring and improves its elasticity, making it capable of enduring high mechanical stresses. Heat treatment typically involves two main processes: hardening and tempering.

Hardening: The coil spring is heated to a high temperature (usually between 800°C and 1000°C) to transform the crystalline structure of the metal, making it harder and stronger. The spring is then rapidly cooled, often by quenching it in oil or water. This rapid cooling hardens the metal, increasing its tensile strength.

Tempering: After hardening, the spring is reheated to a lower temperature (around 200°C to 400°C) and then cooled slowly. This process reduces the brittleness of the material, ensuring that the spring retains its strength without being too rigid. Tempering helps achieve the right balance between strength and flexibility, ensuring that the spring can withstand repeated loading and unloading without breaking.

Quality Control and Testing of Coil Wire Springs

Before coil spring adjustable are delivered to customers, they undergo rigorous testing and quality control procedures. These tests may include measuring the spring's dimensions, checking its hardness, and performing fatigue tests to simulate real-world usage. Ensuring that the springs meet the specified standards is crucial to prevent failures in critical applications.

The manufacturing process of adjustable coil springs involves several stages, from material selection to coiling, heat treatment, and surface finishing. Each step is essential for producing a high-quality spring that meets the demanding requirements of industries such as automotive, aerospace, and manufacturing. With advancements in materials science and manufacturing technologies, coil wire springs continue to evolve, becoming more efficient, durable, and capable of handling the ever-increasing demands of modern mechanical systems.
