Cavity tie spacing is crucial for structure integrity.

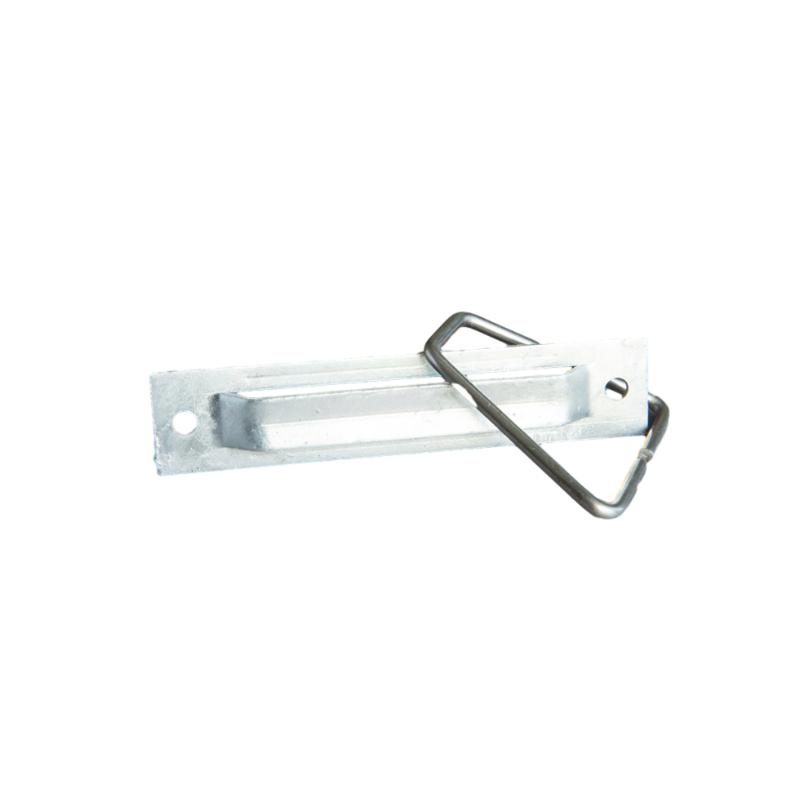

The Art of Cavity Tie Spacing in Civil Engineering In the realm of civil engineering, cavity tie spacing is a crucial aspect that ensures the integrity and durability of masonry structures. It refers to the distance between the metal ties inserted into the wall cavities to provide additional support and prevent the movement of inner and outer leafs. Proper cavity tie spacing not only enhances the structural stability but also plays a vital role in improving thermal performance and preventing moisture penetration. The importance of cavity tie spacing cannot be overstated. When executed correctly, it acts as a defense mechanism against various environmental factors such as wind, rain, and temperature fluctuations. These ties are designed to bridge the gap between the two leaves of a cavity wall, binding them together while allowing for slight expansion and contraction due to changes in weather conditions. Without adequate spacing, the structure risks developing cracks or even collapsing under extreme circumstances. From an architectural standpoint, achieving optimal cavity tie spacing requires a meticulous approach. Engineers must consider factors such as the type of materials used, the thickness of the walls, and the geographical location of the building. For instance, areas prone to high winds or seismic activity might necessitate closer tie spacing to ensure greater resilience For instance, areas prone to high winds or seismic activity might necessitate closer tie spacing to ensure greater resilience For instance, areas prone to high winds or seismic activity might necessitate closer tie spacing to ensure greater resilience For instance, areas prone to high winds or seismic activity might necessitate closer tie spacing to ensure greater resiliencecavity tie spacing. Conversely, in more stable environments, engineers can opt for wider spacing, which can still maintain the required strength while potentially reducing costs. Furthermore, the material selection for cavity ties is another essential consideration. Traditionally, steel has been the go-to option due to its high tensile strength and resistance to corrosion. However, with advancements in technology, alternatives such as stainless steel or composite materials have emerged, offering improved durability and reduced maintenance requirements. In conclusion, cavity tie spacing is a subtle yet significant detail in civil engineering projects. It represents the fine balance between structural integrity, energy efficiency, and cost-effectiveness. As we continue to push the boundaries of architectural design, understanding and implementing proper cavity tie spacing remains a cornerstone of successful construction practices. Through careful planning and execution, engineers can create buildings that not only withstand the test of time but also contribute positively to the environment and the communities they serve.
